Wholesale Short spring nut
Home / Products / Channel steel and accessories / Screw nut / Spring nut / Short spring nut
Short spring nut
PRODUCT CATEGORY
Bolt and Nuts
Screw nut Bolts
Punch and Dies
Channel steel and accessories
Channel steel Screw nut
Channel Connector
Flat connector Corner connector Foundation
PDF Download
Mold performance Building Structural Loading Specifications Specification for Design of Steel Structures Atmospheric Environment Corrosion Classification GBT_ _15957-1995
Our certification
Short spring nut

Short spring nut

Contact us
Add to cart
short-spring-nut
Product Details
Inquiry form
Article number Product name Size Material
ZP HDG SS
7310006 Short spring nut M6 ● ● ●
7310008 Short spring nut M8 ● ● ●
7310010 Short spring nut M10 ● ● ●
7310012 Short spring nut M15 ● ● ●
7310016 Short spring nut M16 ● ● ●
7310007 Short spring nut 1/4 ● ● ●
7310009 Short spring nut 5/16 ● ● ●
7310011 Short spring nut 3/8 ● ● ●
7310013 Short spring nut 1/2 ● ● ●
7310017 Short spring nut 5/8 ● ● ●
Submit

Delivering Excellence With Business

Jiaxing Taigor Machinery Co., Ltd. (Taigor) was established in 1986, is a Short spring nut suppliers and Short spring nut company, initially providing molds for the standard parts industry. Over the past 30 years, through close contact with customers, internal R&D and testing, Taigor has accumulated rich experience and technology while providing products and services to customers.
30 years of successful experience
Established in 1986
Entered the professional field of nut punch in 1996
In 2002, its own factory was established and CNC was introduced
In 2005, the slow wire processing center was introduced
In 2009, 4-axis machining center
In 2015, the automatic grinding machine was introduced
Our Certificate
Guarantee high quality with our expertise
Invention patent
Invention patent
Invention patent
Invention patent
Invention patent
Invention patent
Sira certificate
Sira certificate
Related products
Screw nut DM6A4692
Screw nut DM6A4692 Taigor Machinery has rich experience in the manufacture of standard and non-standard special-shaped ...
Auto Parts Bolts
Auto Parts Bolts Our bolt categories include, but are not limited to, hexagon bolts, hexagon flange bolts, square hea...
Multilayer Punch
Multilayer Punch
Bolt Head Punch
Bolt Head Punch
Square Nut Punch - Extra Length & Bold Bottom
Square Nut Punch - Extra Length & Bold Bottom
Wheel Hub Punch
Wheel Hub Punch
Deep Star-Head Punch - Long Body
Deep Star-Head Punch - Long Body

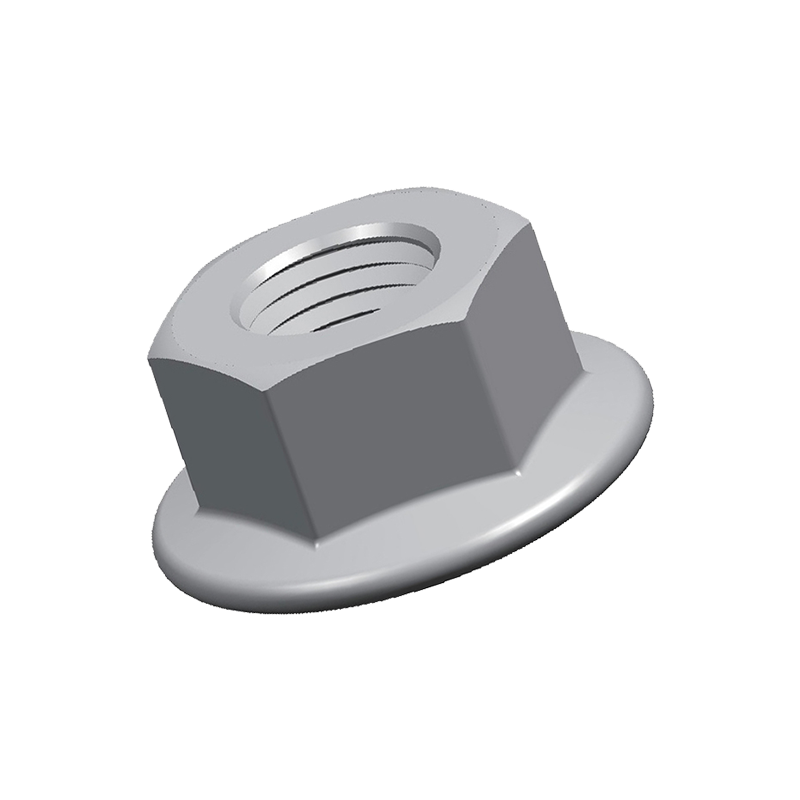

Flange nuts
Flange nuts Taigor Machinery has rich experience in the manufacture of standard and non-standard special-shaped ...
Hex nuts
Hex nuts Taigor Machinery has rich experience in the manufacture of standard and non-standard special-shaped ...
No spring nut
No spring nut
Short spring nut
Short spring nut
Flat spring nut
Flat spring nut
LATEST UPDATES
WHAT’S NEWS
Industry news What is the fireplace protection overall performance of engineering channel metal?

The fire safety performance of engineering channel metallic is a critical attention in building design and construction. The behavior of metallic in fire depends on numerous factors, which includes it...

Dec 21,2023
VIER MORE
Industry news Are there any necessities for the scale and form of engineering channel steel?

The size and form of engineering channel steel are important aspects that have an impact on its structural performance and load-bearing capacity. Engineering channels are generally available in standa...

Dec 14,2023
VIER MORE
Industry news What is the burden-bearing ability of engineering channel steel?

The load-bearing capability of engineering channel steel depends on several factors, which includes the kind and grade of metal, the scale and profile of the channel, the support conditions, and the i...

Dec 06,2023
VIER MORE
Industry news What is the recommended torque for tightening the bolts?

The recommended torque for tightening engineering bolts depends on various factors, including the bolt size, material, and the specific requirements of the application. The torque specification is cru...

Nov 27,2023
VIER MORE

Product Knowledge

Short spring channel nut is a type of fastening component used in various applications, especially in construction, electrical, and industrial settings. It is designed to be inserted into a channel or strut, such as a Unistrut channel or similar system, to secure objects, fixtures, or equipment to the channel system.
Channel Compatibility: Short spring channel nuts are specifically designed to fit into the channels of strut systems like Unistrut. These systems provide a framework for supporting pipes, conduit, cables, and other equipment in various installations.
Spring Mechanism: The "spring" in the name refers to a mechanism within the channel nut. This spring mechanism allows for quick and secure installation by gripping the channel's edges. When the nut is inserted into the channel, the spring compresses, and it expands to secure the nut in place when released.
Short Profile: The "short" aspect of these nuts indicates that they have a shorter profile compared to standard channel nuts. This is advantageous when you have limited space or need a low-profile fastening solution.
Versatile Attachment: Short spring channel nuts are used to attach a wide range of objects and equipment to channel systems. These can include conduit, pipes, cable trays, lighting fixtures, signage, and various other components in construction and industrial settings.
Quick Installation: The spring mechanism in these nuts simplifies installation by reducing the need for additional tools. They can be easily slid into the channel and then securely tightened in place.
Secure and Adjustable: Once in position, the nut can be adjusted along the length of the channel to accommodate the specific requirements of the installation. It can also be easily repositioned or removed as needed.
Short spring channel nuts are essential components for creating modular and adaptable support structures in various applications. They provide a convenient and secure method for attaching objects to channel systems, and their short profile can be particularly useful when space is limited.
